Tire Clamps for Mining Vehicle Wheels
Features of Tire Handler
1. Please obtain the actual load of the forklift/attachment from the forklift manufacturer
2. The forklift needs to provide 4 sets of additional oil circuits,
3. The installation level can be changed according to user requirements
4. Additional quick change joints and side shifts can be added according to user requirements.
5. Additional hydraulic safety swing arms can be added according to user requirements
6. The main body can be rotated 360° and the roulette can be tilted 360° according to user requirements. Additional price
7: *RN, for the main body to rotate 360° *NR, for the roulette to rotate 360° *RR, for the main body and the roulette to rotate 360°
Flow and pressure requirements
|
Model |
Pressure value |
Flow value |
|
|
Maximum |
Minimum |
Maximum |
|
|
30C/90C |
200 |
15 |
80 |
|
110C/160C |
200 |
30 |
120 |
Product parameter
|
Type |
Carrying capacity(kg) |
Body rotation Pdeg. |
roulette spin adeg. |
A（mm） |
B（mm） |
W（mm） |
ISO(grade) |
Horizontal center of gravity HCG（mm） |
Loss of load distance V(mm) |
Weight (kg) |
|
20C-TTC-C110 |
2000 |
40 |
100 |
600-2450 |
1350 |
2730 |
IV |
500 |
360 |
1460 |
|
20C-TTC-C110RN |
2000 |
360 |
100 |
600-2450 |
1350 |
2730 |
IV |
500 |
360 |
1460 |
|
30C-TTC-C115 |
3000 |
40 |
100 |
710-2920 |
2400 |
3200 |
V |
737 |
400 |
2000 |
|
30C-TTC-C115RN |
3000 |
360 |
100 |
710-2920 |
2400 |
3200 |
V |
737 |
400 |
2000 |
|
30C-TTC-C115RR |
3000 |
360 |
360 |
710-2920 |
2400 |
3200 |
V |
737 |
400 |
2000 |
|
35C-TTC-N125 |
3500 |
40 |
100 |
1100-3500 |
2400 |
3800 |
V |
800 |
400 |
2250 |
|
50C-TTC-N135 |
5000 |
40 |
100 |
1100-4000 |
2667 |
4300 |
N |
860 |
600 |
2600 |
|
50C-TTC-N135RR |
5000 |
360 |
360 |
1100-4000 |
2667 |
4300 |
N |
860 |
600 |
2600 |
|
70C-TTC-N160 |
7000 |
40 |
100 |
1270-4200 |
2895 |
4500 |
N |
900 |
650 |
3700 |
|
90C-TTC-N167 |
9000 |
40 |
100 |
1270-4200 |
2885 |
4500 |
N |
900 |
650 |
4763 |
|
110C-TTC-N174 |
11000 |
40 |
100 |
1220-4160 |
3327 |
4400 |
N |
1120 |
650 |
6146 |
|
120C-TTC-N416 |
12000 |
40 |
100 |
1270-4200 |
3327 |
4400 |
N |
1120 |
650 |
6282 |
|
160C-TTC-N175 |
1600 |
40 |
100 |
1220-4160 |
3073 |
4400 |
N |
1120 |
650 |
6800 |

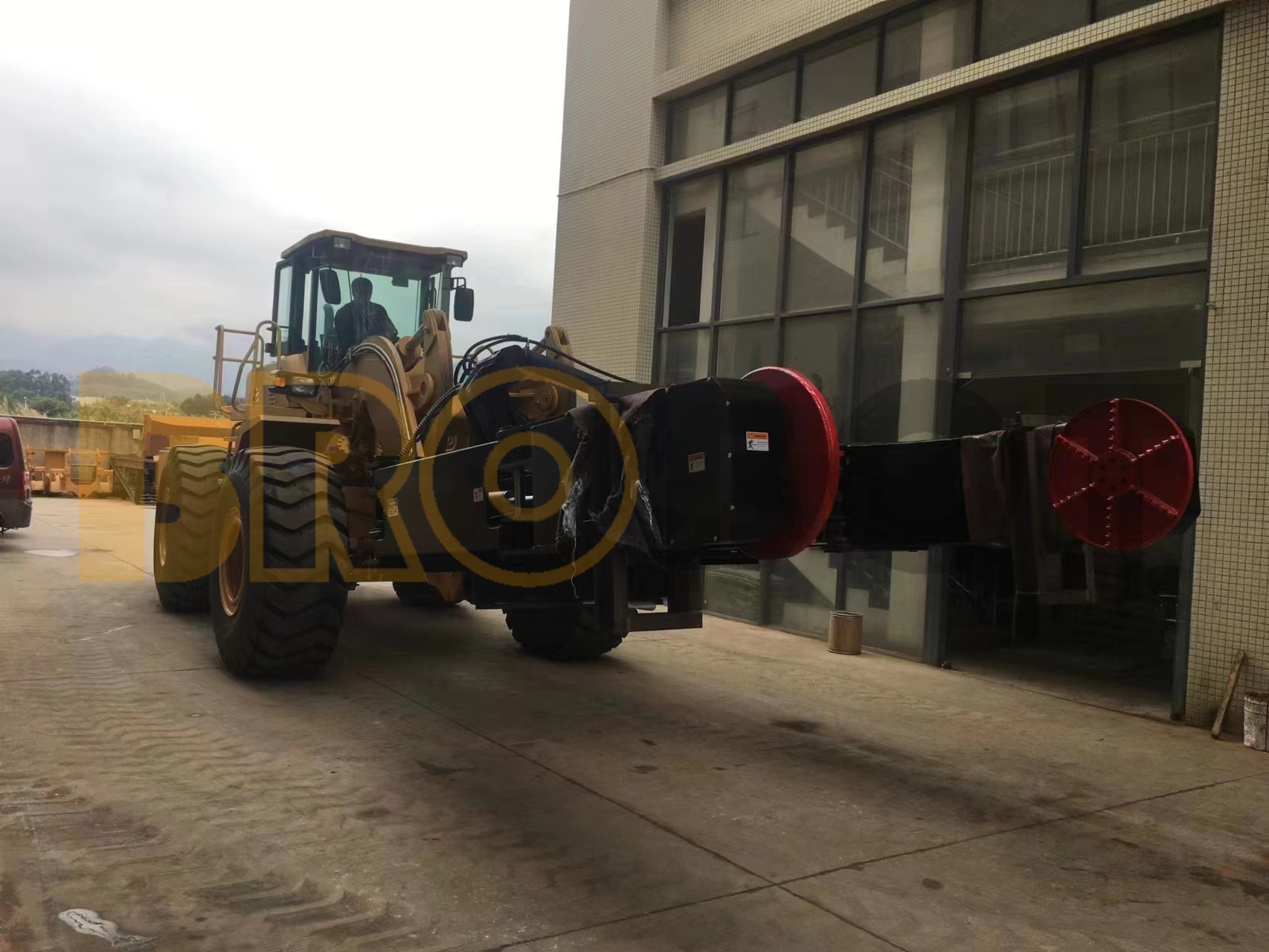

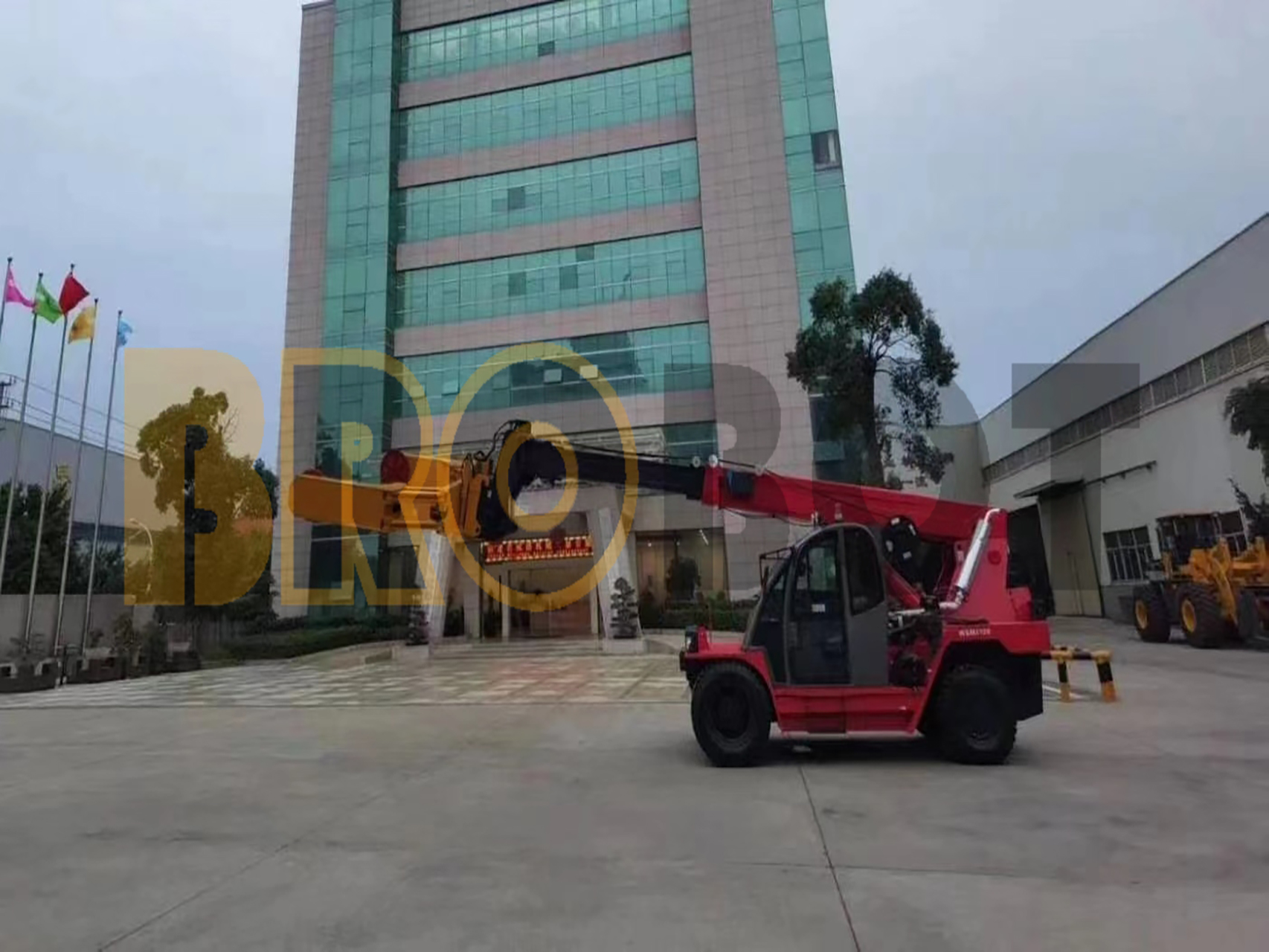

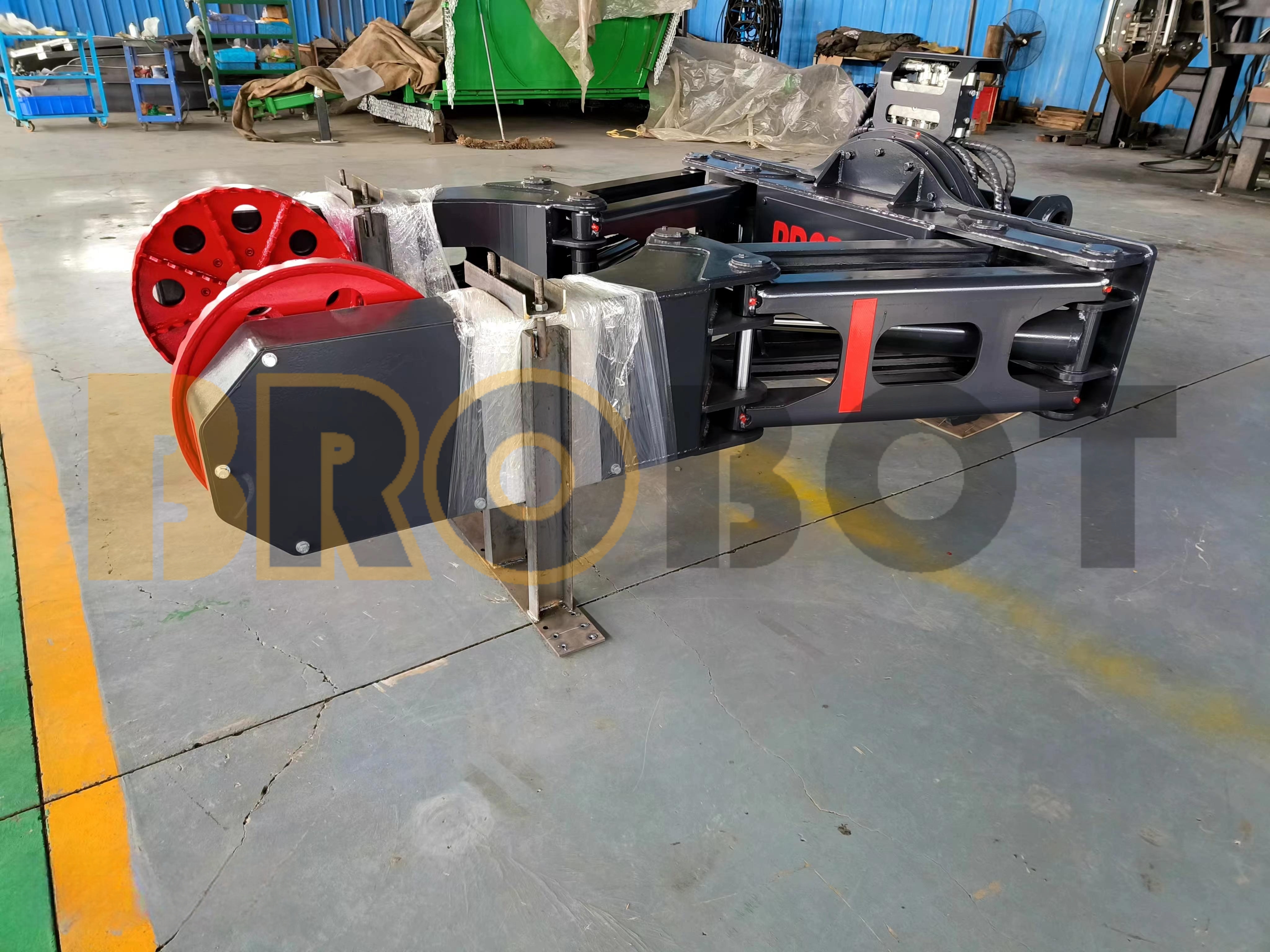

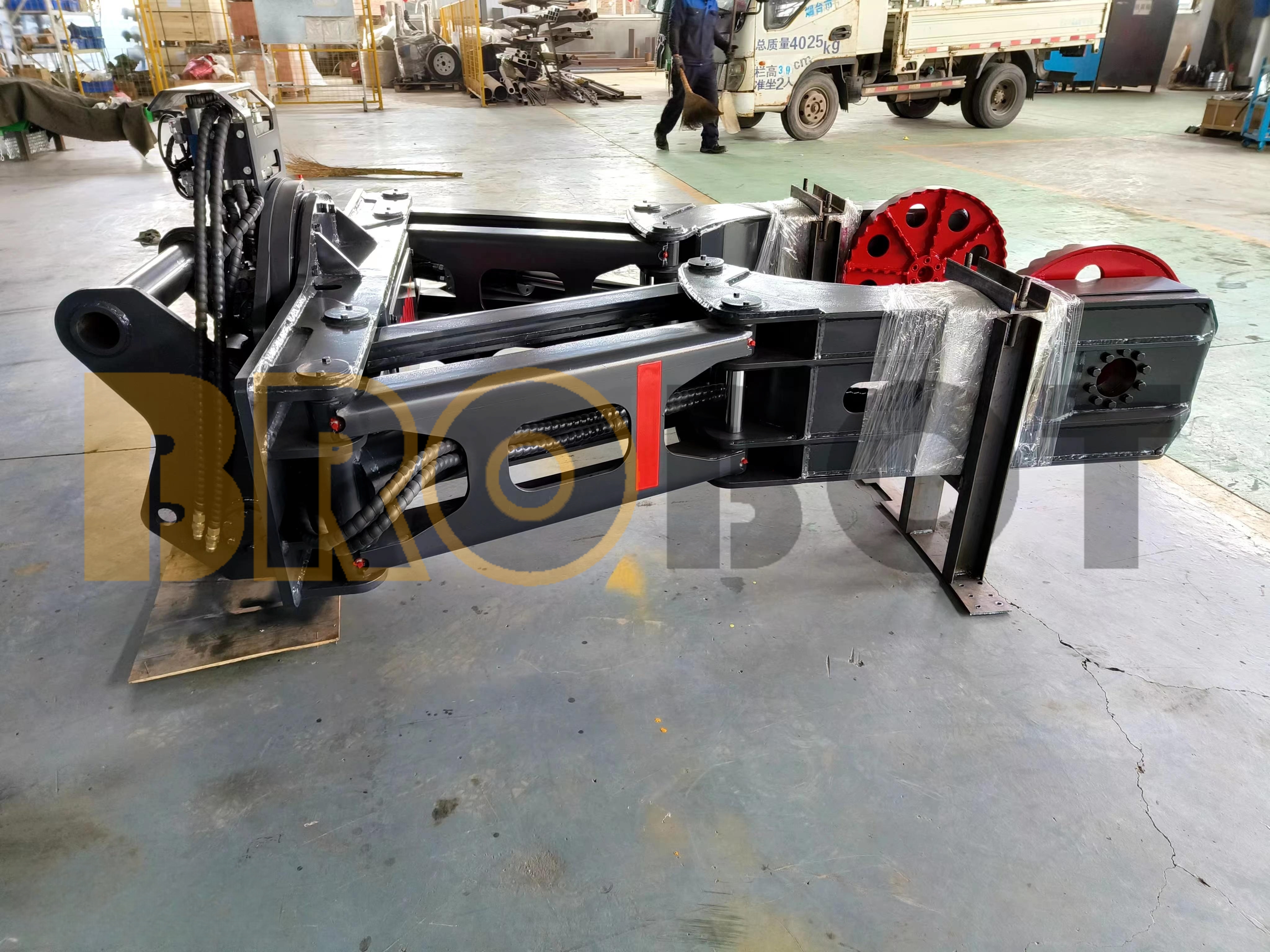

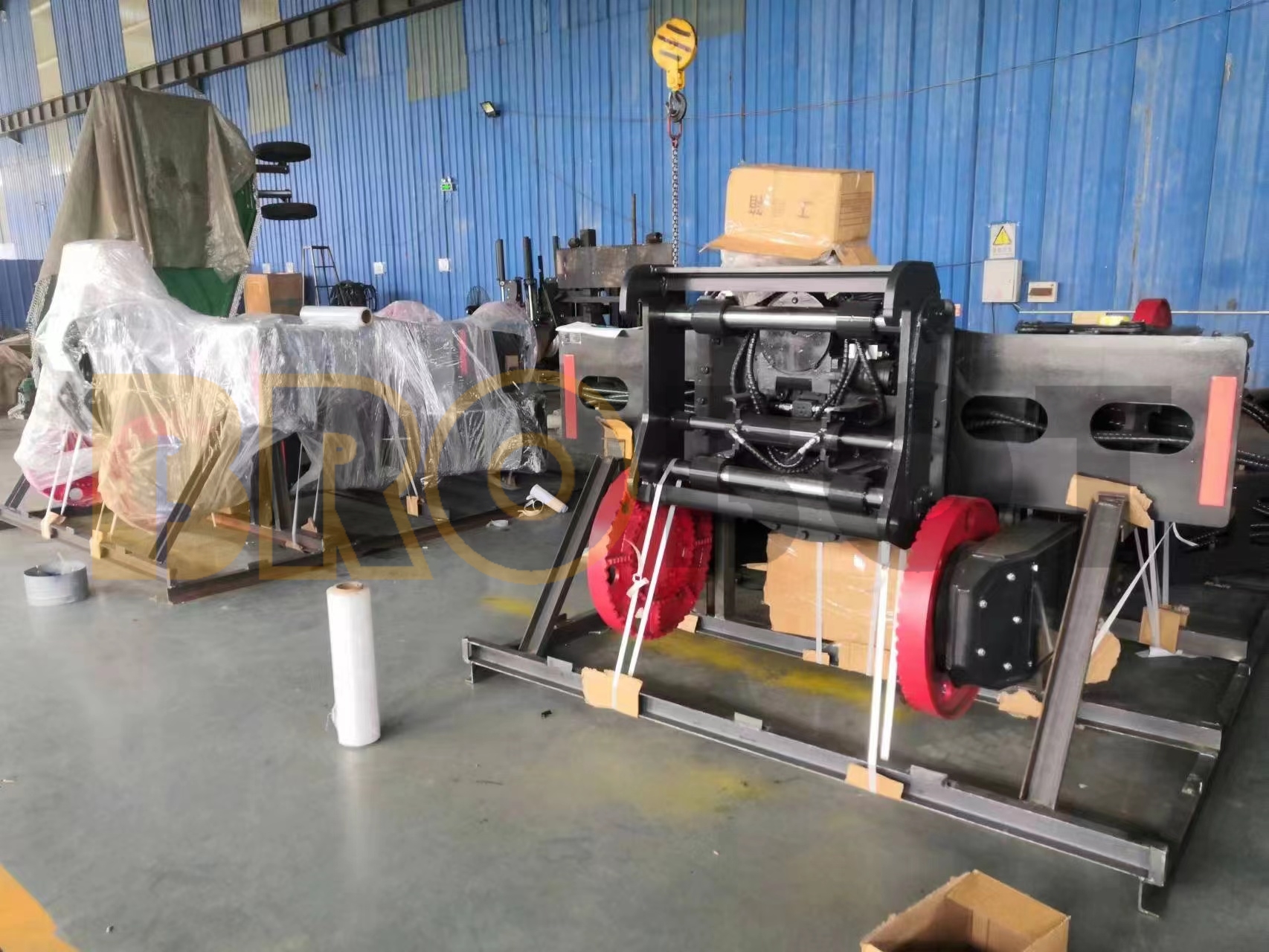

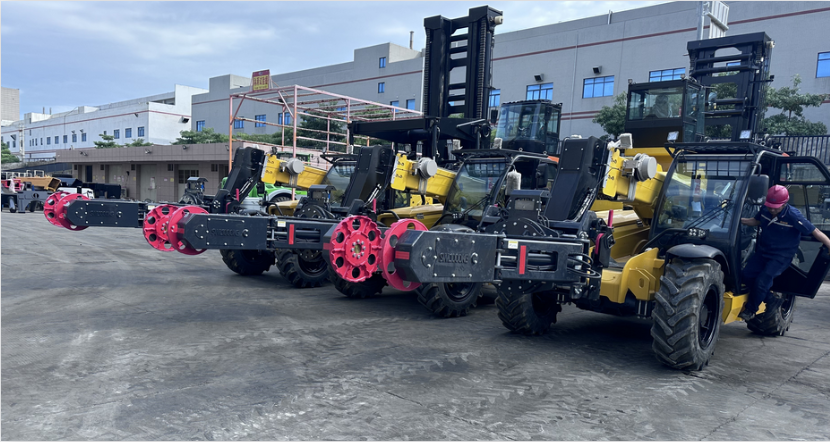

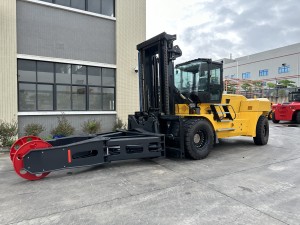

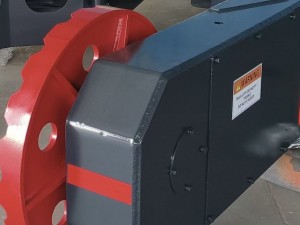

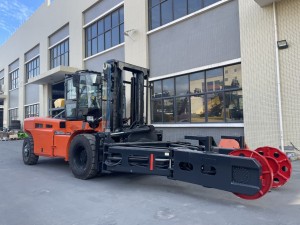

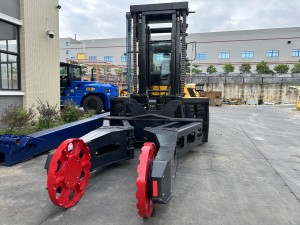

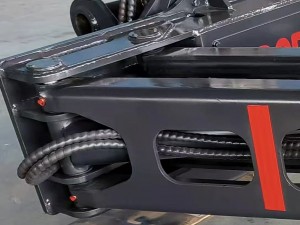

Product display
FAQ
Q:What equipment are mining truck tire handler usually used on?
A:Mining truck tire clamps are suitable for loaders, forklifts, automatic arms, hydraulic pump transplanters and other equipment.
Q:What is the main function of the mining truck tire handler?
A:Mining truck tire handler are mainly used for removing and handling mining machinery and heavy mining vehicle tires.
Q:What is the maximum load capacity of the mining truck tire handler?
A:The maximum load capacity of the mining truck tire clamp is 16 tons.
Q:What is the processing tire length of the mining truck tire handler?
A:The tire length that the mining truck tire clamp can handle is 4100mm.
Q:What are the structural features of mining truck tire handler?
A:The mining truck tire handler has a novel structure and a large load-bearing capacity.
Q:What are the advantages of mining truck tire handler?
A:Mining truck tire clamps have a large load capacity, the ability to handle large tires, and a novel structure.
Q:How to use mining truck tire clips?
A:When using a mining truck tire clamp, it needs to be installed on the corresponding equipment, then use the clamp to clamp the tire and move it to the position that needs to be processed.
Q:How much is the price of mining truck tire clamps?
A:The price of mining truck tire clamps needs to be evaluated according to different models and configurations.
