Paper Roll Clamps – Forklift

Short Description:

Paper roll clamps enable efficient, safe, and damage-free handling and stacking of paper rolls. They can securely grip the rolls and rotate them continuously by 360°, facilitating horizontal and vertical position changes. Ideal for pallet-free operations, they are widely used in industries such as paper manufacturing, packaging, printing, and logistics.

Send email to us

Product Detail

Product Tags

Product details

High-strength structural design ensures durability and reliable performance, meeting the demands of continuous heavy-duty operations.

Two arms design enhances visibility, ensuring precise and efficient paper roll handling.

Smooth arm surfaces and slim tips allow easy access to tightly stacked rolls while protecting adjacent surfaces from damage.

One-piece cast clamp construction offers exceptional wear resistance and longevity. Replaceable wear blocks reduce maintenance costs, while protective stops safeguard the clamp from ground impact in vertical positions.

Integrated pressure-maintaining check valves on the arm cylinders ensure secure grip during operations, minimizing risks from hydraulic failures. Diagnostic ports facilitate quick fault detection and maintenance.

High-strength self-lubricating joints extend bushing life, eliminating the need for regular lubrication while protecting pivot pins.

Bi-directional hydraulic locks enable continuous 360° rotation and secure positioning at any angle.

Standard one-piece cast clamps are ideal for a wide range of paper roll handling tasks.

Product Parameter

Model No.	Capacity / Load Center (kg/mm)	Mounting Class	Roll Range (mm)	Long Arm Length A（mm)	Short Arm Length B (mm)	Pad Dimensions W*H (mm)	Effective Thickness LL (mm)	Horizontal Center of Gravity CGH (mm)	Weight （kg)
11RCF12-A002	1200/600	ISO 2A	250-1150	730	528	254*490	231	252	460
11RCF12-A004	1200/600	ISO 2A	350-1300	730	526	246*490	240	260	450
11RCP15-A003	1500/650	ISO 2A	250-1300	922	589	228*750	229	302	630
11RCP20-B001	2000/650	ISO 3A	250-1300	850	580	230 × 840	245	310	688
11RCF20-B002	2000/650	ISO 3A	600-1300	850	580	230 × 840	245	310	679
11RCP20-B003	2000/800	ISO 3A	350-1600	960	780	230 × 840	232	344	765
11RCF20-B004	2000/800	ISO 3A	610-1600	960	780	230 × 840	232	344	752
11RCP20-B107	2000/725	ISO 3A	200-1450	930	670	230 × 840	238	320	740
11RCF20-B108	2000/725	ISO 3A	450-1450	930	670	230 × 840	238	320	729
11RCP25-B001	2500/650	ISO 3A	250-1300	850	580	230 × 840	245	310	730
11RCP25-B003	2500/800	ISO 3A	350-1600	960	780	230 × 840	232	344	815
11RCP25-B107	2500/725	ISO 3A	200-1450	930	670	230 × 840	238	320	774
11RCF20-B006	1700/925	ISO 3A	720-1850	1137	828	230 x 840	242	382	900
11RCF27-B006	2200/925	ISO 3A	720-1850	1146	839	254 x 990	210	386	1150
11RCP30-B001	3000/650	ISO 3A	250-1300	894	594	250 x 990	206	310	935
11RCP30-B003	3000/800	ISO 3A	350-1600	1057	698	254 x 990	210	356	1030
11RCP35-C001	3500/650	ISO 4A	280-1300	859	594	250 x 990	252	328	1004
11RCP35-C003	3500/800	ISO 4A	610-1600	960	780	250 x 990	256	375	1105
11RCF35-B023	2300/1150	ISO 3A	960-2300	1072	703	254 x 990	226	418	1640
11RCF35-C023	2300/1150	ISO 4A	960-2300	1072	703	254 x 990	226	418	1640
11RCF40-C022	2700/1100	ISO 4A	850-2200	1404	1040	254 x 990	231	420	1530
11RCF45-C023	3200/1150	ISO 4A	960-2300	1551	1036	254 x 990	226	418	1640
11RCF45-C025	3000/1250	ISO 4A	1250-2500	1560	1112	250 x 990	226	437	1730

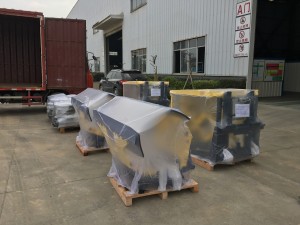

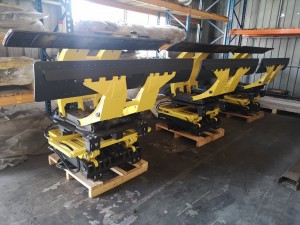

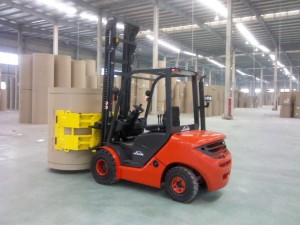

Product display

FAQ

Q: What materials are available for clamps, and how do you choose the appropriate one?

A: Clamp materials include cast steel, rubber, and polyurethane. Rubber is ideal for delicate, high-grade paper rolls, while polyurethane is better suited for unwrapped, slippery paper rolls.
